Smart Water Meters
Advanced water monitoring and consumption tracking.
All Variants & Sizes
Both models are available through Al Taqa Technical. Contact us for pricing, sizing guidance, and technical support tailored to your project.
Electrosonic 3Q — Ultrasonic Smart Water Meter
The Electrosonic 3Q is a static ultrasonic water meter designed for accurate cold and hot water measurement in residential and commercial applications. With no moving parts, it offers long-term reliability, tamper detection, and integrated communication for remote reading.
| Technology | Static ultrasonic (no moving parts) |
|---|---|
| Accuracy Class | Class 2 (ISO 4064 / MID) |
| Nominal Diameter | DN15 / DN20 / DN25 |
| Flow Range (Q3/Q1) | R≥160 |
| Operating Temperature | Cold: 0.1°C – 30°C; Hot: up to 90°C |
| Max. Operating Pressure | 16 bar (PN16) |
| Communication | M-Bus / LoRaWAN (optional) |
| Battery Life | Up to 12 years |
| Display | LCD with flow rate, consumption & alarm indicators |
| Protection Rating | IP68 (submersible) |
| Standards | ISO 4064, MID 2014/32/EU, WRAS (optional) |
| Installation | Horizontal or vertical; any orientation |

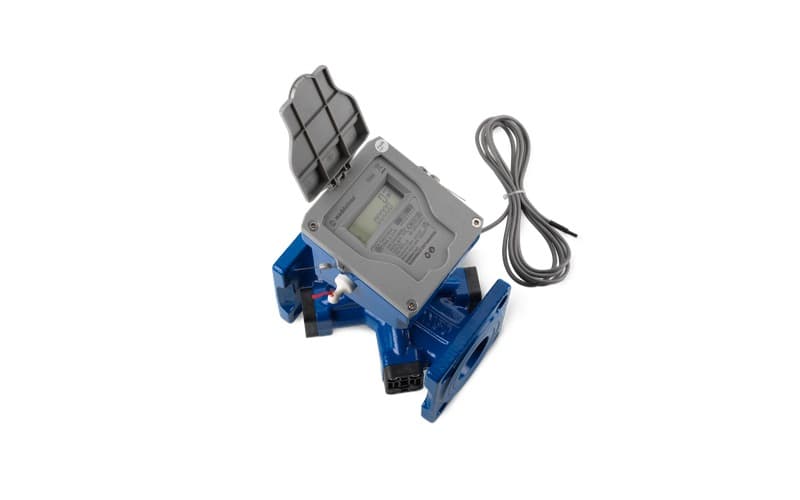

E-bulk 3Q — Volumetric Bulk Water Meter
The E-bulk 3Q is a multi-jet volumetric water meter built for bulk metering in commercial, industrial, and district water networks. Its robust mechanical design delivers Class 2 accuracy across a wide flow range with optional pulse or M-Bus output for AMR/AMI integration.
| Technology | Volumetric multi-jet (wet-type register) |
|---|---|
| Accuracy Class | Class 2 (ISO 4064 / MID) |
| Nominal Diameter | DN15 / DN20 / DN25 / DN32 / DN40 / DN50 |
| Flow Range (Q3/Q1) | R≥80 |
| Operating Temperature | Cold water: 0.1°C – 30°C |
| Max. Operating Pressure | 16 bar (PN16) |
| Communication | Pulse output (reed switch); M-Bus optional |
| Display | Roller-drum mechanical register (odometer style) |
| Protection Rating | IP68 (submersible) |
| Standards | ISO 4064, MID 2014/32/EU |
| Installation | Horizontal (preferred); vertical supported |
| Body Material | Polymer composite / brass (DN40–DN50) |
- Commercial Buildings
- Hospitality
- Utilities
- Industrial Facilities
Compatible with leading BMS platforms including Johnson Controls, Schneider Electric, Honeywell, and Tridium for a unified view of your facility's energy performance.
